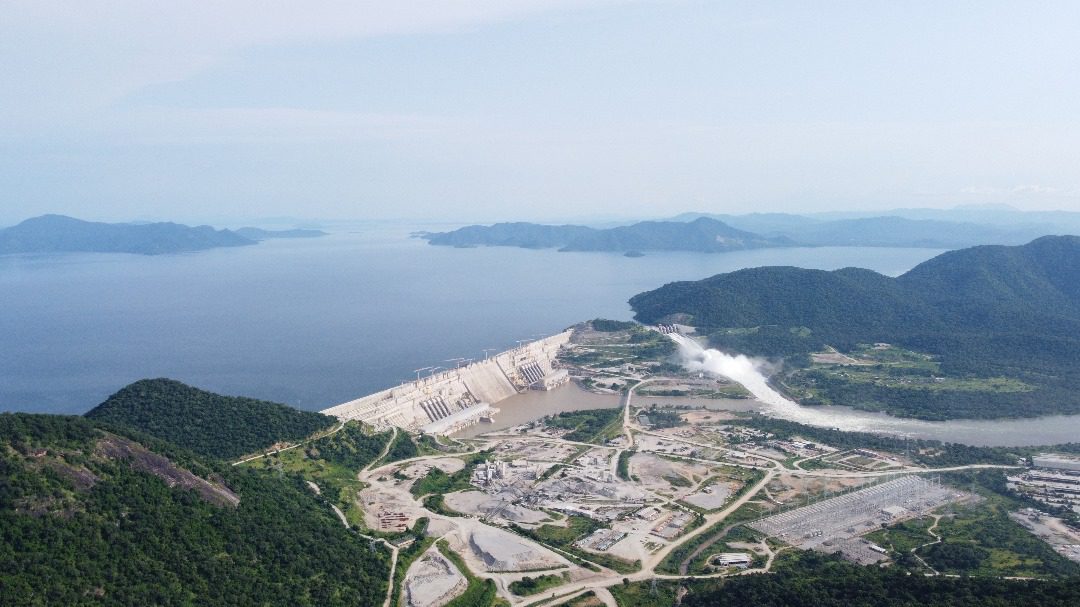

Grand Ethiopian Renaissance Dam Hydropower Project, 5,150 MW – Ethiopia

Home > Hydropower and Dams > Grand Ethiopian Renaissance Dam Hydropower Project, 5,150 MW – Ethiopia
  • Location - Ethiopia

Project

Installed capacity of 5,150 MW (11×400 MW and 2×375 MW Francis turbines),
RCC main dam 175 m high totaling 10.5 million m³,
CFRD saddle dam 60 m high and 5 km long,

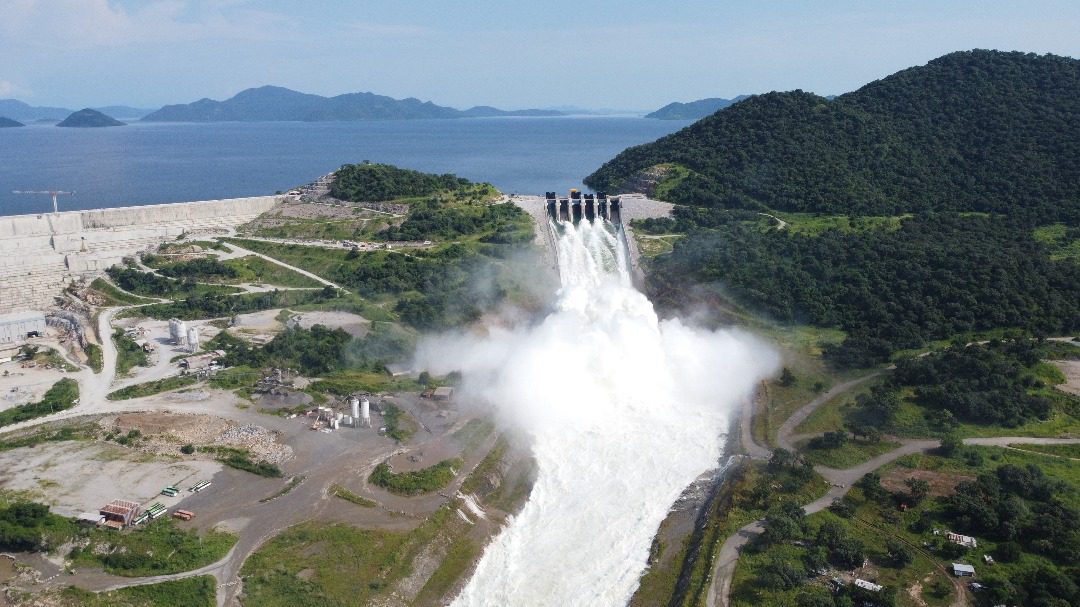

Gated spillway on the downstream face of the dam body and two ungated spillways with a total discharge capacity of 18,000 m³/s (routed),

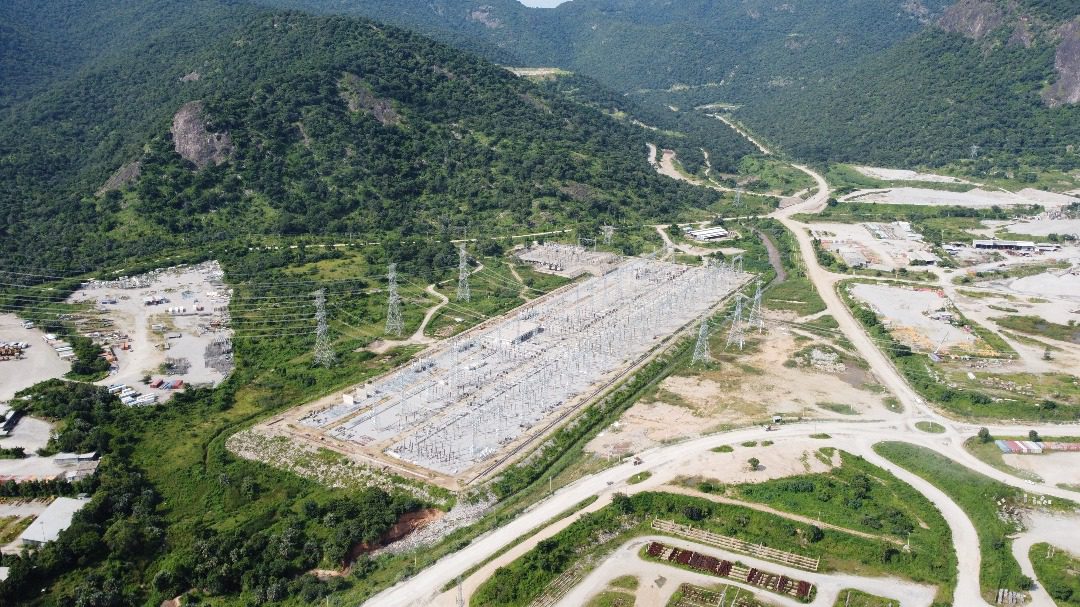

Reservoir volume 74 billion m³, two double circuit 500kV and one single circuit 400kV Transmission Lines.

Client

Ethiopia Electric Power, EEP

Services

  • Review of Basic Design
  • Review of Detailed Design
  • Review of Environmental and Social Management Plan of the EPC Contractor
  • Construction Supervision
  • Contract Management
  • Commissioning
  • Assistance to Client in Bidding Evaluation and Contract Negotiation
  • Transfer of Knowledge to Client’s Staff.

Status

Five Units in Operation (2×375 MW – 3×400 MW) and Eight Units (8×400 MW) Under Construction
